Unità a davanzale e sottodavanzale

layer

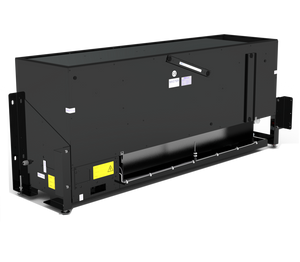

SCHOOLAIR-B

Ready-to-operate decentralised ventilation unit that provides good comfort levels, used for the ventilation and extract ventilation of rooms such as classrooms in schools

  • Acoustically optimised EC fans with low specific fan powers, SFP-1 according to EN 13779
  • Plate heat exchanger for heat recovery (air/air), including bypass with electric actuator
  • Highly efficient heat exchanger for heating and cooling as 2-pipe or 4-pipe system
  • Heat recovery all year round
  • Reduction of fine dust and pollen contamination due to integral filters that conform to VDI 6022 – F7 fresh air filter and G3 extract air filter
  • Easy filter change, no tools required
  • Condensate drip tray with condensate drain
  • Motorised shut-off dampers, normally closed (NC)
  • Installation without interruption to the operations of the respective school


Optional equipment and accessories

  • Modular control system FSL-CONTROL II, specially for decentralised ventilation systems
  • Demand-based fresh air volume, free cooling and night purge, depending on control strategy
  • Various fixing systems to fix the unit to the floor or wall
  • Variable heat recovery
  • Powder-coated RAL 9005 (black)

Heizleistung bis 6.090 W

per saperne di più

layer

FSL-B-SEK



Ready-to-operate decentralised ventilation unit that provides good comfort levels

  • Acoustically optimised EC fan with low specific fan powers, SFP = 1 according to EN 13779
  • Heat exchanger for heating and cooling as 2-pipe or 4-pipe system
  • G3 filter fleece to protect the unit
  • Condensate drip tray with condensate drain


Optional equipment and accessories

  • Modular control system X-AIRCONTROL, specially for decentralised ventilation systems
  • Various fixing systems to fix the unit to the floor or wall
  • Powder coating in many different colours, e.g. RAL CLASSIC

Kühlleistung: bis 520 W Heizleistung: bis 1220 W

per saperne di più

layer

FSL-B-ZAS



Ready-to-operate decentralised ventilation unit that provides good comfort levels, used for the ventilation and extract ventilation of rooms

  • Acoustically optimised EC fans with low specific fan powers, SFP = 1 according to EN 13779
  • Counter flow heat exchanger for heat recovery (air/air), including variable bypass
  • Heat exchanger for heating and cooling as 2-pipe or 4-pipe system
  • Reduction of fine dust and pollen contamination due to integral filters that conform to VDI 6022 – F7 fresh air filter and G3 extract air filter
  • Condensate drip tray with condensate drain
  • Motorised shut-off dampers, normally closed (NC)
  • Self-powered or motorised secondary air damper for adding secondary air to increase the thermal output


Optional equipment and accessories

  • Modular control system X-AIRCONTROL, specially for decentralised ventilation systems
  • Free cooling and night purge, depending on control strategy
  • Various fixing systems to fix the unit to the floor or wall; a frame is also available
  • Powder coating in many different colours, e.g. RAL CLASSIC

Kühlleistung: bis 760 W Heizleistung: bis 2850 W

per saperne di più

layer

FSL-B-ZAB/SEK

Ready-to-operate decentralised ventilation unit that provides good comfort levels, used for the ventilation and extract ventilation of rooms

  • Acoustically optimised EC fans with low specific fan powers, SFP-1 according to EN 13779
  • Plate heat exchanger for heat recovery (air/air), including bypass damper with electric actuator (open-close)
  • Heat exchanger for heating and cooling as 2-pipe or 4-pipe system
  • Reduction of fine dust and pollen contamination due to integral filters that conform to VDI 6022 – F7 fresh air filter and G3 extract air filter
  • Inspection panel simplifies filter change and cleaning of the heat exchanger
  • Condensate drip tray with condensate drain
  • Motorised shut-off dampers, normally closed (NC)
  • Automatic switching to secondary air mode (based on air quality)


Optional equipment and accessories

  • Modular control system FSL-CONTROL II, specially for decentralised ventilation systems
  • Demand-based fresh air volume, free cooling and night purge, depending on control strategy
  • Various fixing systems to fix the unit to the floor or wall
  • Variable heat recovery
  • Powder-coated RAL 9005

Kühlleistung: bis 650 W Heizleistung: bis 2780 W

per saperne di più

Visualisierung der Luftströmung – Dezentrale Fassadenlüftung

Im TROX Strömungsstudio wird das Strömungsverhalten der Luft mit verschiedenen Luftführungssystemen eindrucksvoll sichtbar gemacht. Die Einbringung von Rauch in eine authentische Raumsituation mit Wärmelastsimulatoren zeigt reale Strömungsbilder.
