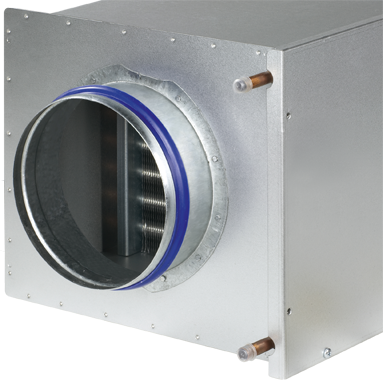

Heat exchanger Type WL

Heat exchanger with copper tubes and aluminium fins

Heat exchanger with copper tubes and aluminium fins






WL

Pour le chauffage du flux d'air dans les gaines circulaires




Circular hot water heat exchanger for the reheating of airflows, suitable for VAV terminal units TVR and mechanical self-powered CAV controllers RN or VFC


  • For hot water up to 100 °C
  • Copper tubes arranged in two rows, with aluminium fins
  • Installation in horizontal or vertical ducts independent of airflow direction
  • Suitable for circular ducts to EN 1506 or EN 13180
  • With lip seal and inspection access
  • Maximum water-side operating pressure is 8 bar
  • Casing air leakage to EN 15727, class D









Autres informations

Application

  • Hot water heat exchanger for reheating the airflow in circular ducts
  • For VAV terminal units Type TVR and for CAV controllers Type RN or VFC
  • For hot water up to 100 °C
  • Construction not designed for and performance data not applicable to cold water operation



Dimensions nominales



  • 100, 125, 160, 200, 250, 315, 400



Pièces et caractéristiques



  • Ready-to-install heat exchanger
  • Copper tubes arranged in two rows
  • Lip seal
  • Inspection access
  • Tested for leakage



Caractéristiques d'exécution



  • Rectangular casing
  • Spigot with lip seal, for circular connecting ducts to EN 1506 or EN 13180
  • Maximum water-side operating pressure is 10 bar
  • Horizontal water connection
  • Plain copper tube ends for water connection



Matériaux et surfaces



  • Casing made of galvanised sheet steel
  • Copper pipes
  • Aluminium fins



Normes et directives

  • Casing air leakage to EN 15727, class D


Maintenance



  • Maintenance-free as construction and materials are not subject to wear


Description

Caractéristiques d'exécution



  • Rectangular casing
  • Spigot with lip seal, for circular connecting ducts to EN 1506 or EN 13180
  • Maximum water-side operating pressure is 10 bar
  • Horizontal water connection
  • Plain copper tube ends for water connection



Normes et directives

  • Casing air leakage to EN 15727, class D


Maintenance



  • Maintenance-free as construction and materials are not subject to wear






Pièces et caractéristiques



  • Ready-to-install heat exchanger
  • Copper tubes arranged in two rows
  • Lip seal
  • Inspection access
  • Tested for leakage



Information technique

Caractéristiques techniques, Sélection rapide, Texte de spécification, Codes de commande

  • Caractéristiques techniques
  • Sélection rapide
  • Texte de spécification
  • Codes de commande

Dimensions nominales100 – 400 mm
Plage de débit-volume10 – 750 l/s ou 36 – 2700 m³/h
Puissance thermique0.25 – 18 kW
Température eau chaude maximale100 °C
Pression de fonctionnement maximale côté eau10 bar
Pression différentielle côté eau0,3 – 12 kPa
Pression différentielle statique5 – 80 Pa

,

Technical data of the heat exchanger


Basic units: TVR, RN and VFC

NS

qv

Δpst

PWW 50/40, te = 16 °C

PWW 70/55, te = 16 °C

l/s

m³/h

Pa

Φ [kW]

ta [°C]

qm [kg/h]

Δpv [kPa]

Φ [kW]

ta [°C]

qm [kg/h]

Δpv [kPa]

100

10

36

5

0.25

36.1

21

0.3

0.40

48.5

23

0.5

1002072100.3831.3330.40.6241.2360.6
10030108150.4728.8410.50.7937.5460.7
10040144250.5527.2480.60.9535.2550.8
10045162300.5826.5510.71.0234.4591
125186550.3632310.30.5842.2340.5
12535126200.5127.9440.50.8736.2510.8
12550180400.62265311.0933.8641
12565234600.724.8611.21.332.3761.3
12575270800.7624.2661.51.4431.6841.5
1602810150.6936.16011.1749.9681
16050180101.0533.19121.8345.81073
16070252151.3531.711742.32431354
16095342251.730.614752.8540.41666
160115414351.9429.716873.2338.81887
2004516250.9733.68421.6946.5982
20080288201.4931.212942.5441.81485
200115414351.9429.716873.2338.81887
200150540552.2928.419993.3736.822310
200180648802.5727.6223114.335.425112
2507025251.5333.813312.67471551
250125450152.3531.320324.14432423
250180648253.13026935.2939.93084
250235846403.762932656.2937.83675
2502901044604.2928.137267.236.24207
31511541452.533.721714.4147.22571
315200720153.8231.533126.6643.13883
3152851026255.0230.443648.4540.14934
3153751350406.0529.1525510.1137.95896
3154601656606.8928.2597711.5236.46727
40018566654.0233.734827.0847.24132
4003251170156.2431.6542310.5542.46154
4004651674308.0630.1699513.439.57816
4006052178509.5428.8827715.8937.49278
40075027007510.9227.9947918.2235.8106210

Φ: Thermal output
PWW: Pumped hot water heating system, flow temperature/return temperature
te: Inlet airflow temperature
ta: Outlet airflow temperature


qv: Volume flow rate
qm: Mass flow rate
Δpv: Water-side differential pressure
Δpst: Static differential pressure









Circular hot water heat exchangers for reheating the airflow in ventilation and air conditioning systems. Dimensions fit VAV terminal units TVR as well as CAV controllers RN and VFC. Spigot with lip seal for ducts according to EN 1506 or EN 13180. Casing leakage according to EN 15727, class C.


Matériaux et finitions



  • Casing made of galvanised sheet steel
  • Copper pipes
  • Aluminium fins



Caractéristiques techniques



  • Volume flow rate range: 10 to 750 l/s or 36 to 2700 m³/h
  • Thermal output: 0.25 – 18 kW
  • Maximum water temperature: 100 °C
  • Maximum water-side operating pressure: 10 bar
  • Water-side differential pressure: 0.3 – 12 kPa
  • Static differential pressure: 5 – 80 Pa



Caractéristiques de sélection



  • qv  (m³/h)
  • te [°C]
  • PWW [°C]
  • Φ [kW]


WL / 160
||
12

1 TypeWL Batterie à eau chaude pour unités VAV TVR et régulateurs CAV RN et VFC 2 Dimensions nominales [mm]100125160200250315400

Order Example: WL/160
Nominal size160 mm

Détails produit

  • DÉTAILS PRODUIT

  • Installation in horizontal or vertical ducts independent of airflow direction
  • Capacity control and supply connections to be provided by others
  • Vents and drainage by others
