TROX OX - THE AIR-IN-ONE-SYSTEM

THE DIGITAL PLATFORM FOR AIR HANDLING TECHNOLOGY AND INTELLIGENT AIR MANAGEMENT

TROX Ox is an innovative system platform for modern air handling technology and intelligent air management in buildings. It connects all air-related components within a unified digital system – from planning and installation through to operation. The platform integrates room control, fire protection, and other air handling systems, and can be seamlessly integrated into existing building and management systems. The result: greater energy efficiency, safety, and comfort for modern buildings.

THE FUTURE OF AIR CONDITIONING AND VENTILATION TECHNOLOGY STARTS NOW.

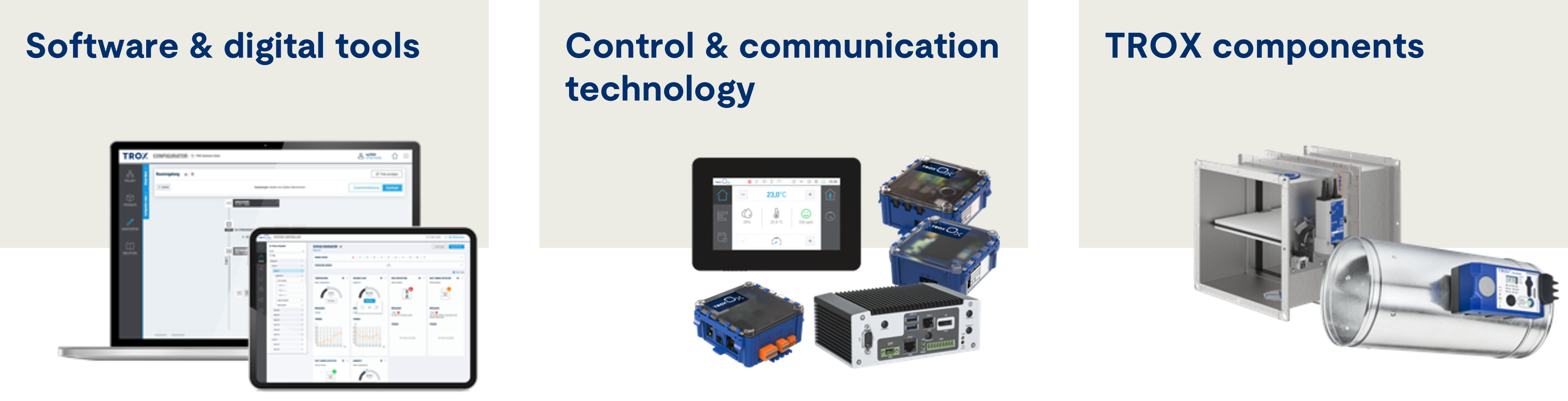

THE ELEMENTS OF THE AIR-IN-ONE SYSTEM.

Better. Online. Planning.

With the TROX CONFIGURATOR.



> Unique planning tool: The TROX CONFIGURATOR enables the design of buildings with TROX OX and supports efficient, structured planning.
> Holistic system selection: Selection and configuration of TROX OX system solutions as well as all other TROX components, products and systems.
> Always up to date: The online configurator runs in the web browser and is therefore always up to date.
> Easy access: Convenient use via the myTROX customer portal.
> Virtual assistant: Supports the selection and configuration of the right systems.




GREATER EFFICIENCY IN INSTALLATION AND OPERATION



PLUG & PLAY INSTALLATION


>

Easy installation: Plug-and-play system for quick connection of all components
> Faster commissioning: Standardized bus systems and wireless protocols ensure efficient communication between components
> Clear interfaces: Central BACnet interface with a single connection point to the building management system (BMS)
> Time savings: Significantly faster installation and reduced complexity
> Advantage in times of skilled labor shortages: Reduced personnel and time requirements
>    Efficient project execution: Deliver projects cost-effectively and on schedule



EFFICIENT BUILDING MANAGEMENT


>

Intuitive operation: Easy management of ventilation and fire protection systems via a central interface
> Full transparency: All system information and parameters for control, regulation and monitoring available at all times
> Optimal indoor climate: Individual control of rooms to meet different usage requirements
> Greater energy efficiency: More efficient heating and cooling through ventilation technology
> Status monitoring: Component status available at any time – enabling early detection of faults or maintenance needs
> Digital twin: System layouts planned in the TROX CONFIGURATOR are available as a digital twin in the management dashboard
> Reduced programming effort: Semi-automated creation of building and system structures – eliminating complex programming as required in conventional BMS


PLANNING EXAMPLE: TROX OX IN APPLICATION.

Whether new construction or modernization: With wired or wireless communication, TROX OX adapts perfectly to any building scenario.

Wired Solution - Ideal For New Buildings

Wireless Solution - Ideal For Existing Buidlings

Abbreviation Description
MBS Building Management System
X-CUBE TROX X-CUBE / Air Handling Unit
SWI Switch
SC / SC-CP System Controller / System Controller Control Panel
FAM-E Field Application Module (Ethernet)
FAM-W Field Application Module (Wireless)
CP / CP-RC / CP-RCNS Control Panel / Room Control Panel / Room Control Panel w/ Sensors
CM Connection Module
SPL Splitter


DISCOVER TROX OX INTERACTIVELY


Immerse yourself in the digital world of TROX OX and explore its functions, system architecture, and applications in an interactive and intuitive way.


Start exploring now

THE BENEFITS ARE IN THE AIR…


INVESTORS


> Real-time insights into systems and subsystems for maximum transparency

> Intuitive user interface for easy operation

> Control, regulation and analysis of the system for maximum energy efficiency


CONSULTANTS


> Accelerate and simplify your planning process

> Planning, calculation and tendering in one tool

> Easy integration of HVAC solutions into the building management system (BMS)

> Fewer interfaces for simpler system design



INSTALLERS


> Plug-and-play system for fast installation

> All components are fully compatible

> Standardized bus systems and connections

> Time-saving installation for cost-efficient implementation

WE ARE HAPPY TO ADVISE YOU.

Describe your specific needs or schedule a free consultation.

Your TROX HESCO Team

Email: trox-hesco@troxgroup.com

Phone: +41 55 250 71 11

Modulo di contatto

FIND MORE INFORMATION HERE

TROX OX - THE AIR-IN-ONE-SYSTEM

Brochure Download
