Lift shaft ventilation

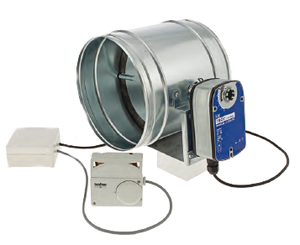

AKE-Lift

Description
Round lift shaft ventilation damper, type AKE-Lift consistingof a round shutoff damper, type AKE, made of galvanizedsheet steel with 230V (24V) spring return actuator and roomthermostat with two switching points (25°C/35°C).
Options:
• Thermostat and actuator wired with cable box

JZ-(LL)-AL-Lift

Description
Lift shaft ventilation damper, type JZ-(LL)-AL-Lift for wall installation,consisting of a louvre damper made of aluminium(JZ-AL), with 230V (24V) spring return actuator and room
thermostat with two switching points (25°C/35°C).
Options:

Louvre damper, type JZ-LL-AL (airtight option according to EN1751/class 4) with 230V (24V) spring return actuator and room thermostat with two switching points (25°C/35°C)
Insulated option of louvre damper and weather protection grille to prevent condensation water (frame and blades insulated with 13mm EPDM).

WSL-JZ-(LL)-AL-Lift

Description Weather protection grille with built-in JZ damper Type WSL-JZ-(LL)-AL-Lift, consisting of a weather protection grille made of natural aluminium (WSL) and a louvre damper built in at the rear, made of aluminium (JZ-AL), with 230V (24V) spring return actuator and room thermostat with two switching points (25°C/35°C). Options: • Louvre damper, type JZ-LL-AL (airtight version according to EN1751/class 3) with 230V (24V) spring return actuator and room thermostat with two switching points (25°C/35°C) • Insulated version of the louvre damper and weather protection grill to prevent condensation water (frame and blades insulated with 13mm EPDM) • Weather protection grill powder coated according to RAL as required

DAB-Lift

Description
Roof construction with built-in lift shaft ventilation damper,type DAB-Lift, consisting of a roof construction insulated witha 13mm EPDM made of aluminium, with WSL weather protectiongrill and an internally installed louvre damper made of aluminium, with 230V (24V) spring return actuator and roomthermostat with two switching points (25°C/35°C).

Options:

Louvre damper type JZ-LL-AL (airtight versions according to EN1751/class 4) with 230V (24V) spring return actuator and room thermostat with two switching points (25°C/35°C)
Insulated versions of the louvre damper to prevent condensation water (frame and blades insulated with 13mm EPDM)
DAB and weather protection grille, RAL powder coated as selected
